500Mbps Nano PowerLine Adapter Kit

500Mbps high speed ideal for HD video streaming
Utilizes existing electrical wires to transmit network data
Easy plug-n-play setup and 128 bit AES security
Powerline transmission range up to 300 meters
Backward compatible with 200Mbps powerline adapters
Features energy saving mode to reduce power consumption

HP-5102K Adapter Kit includes 2 x HP-5102

Overview

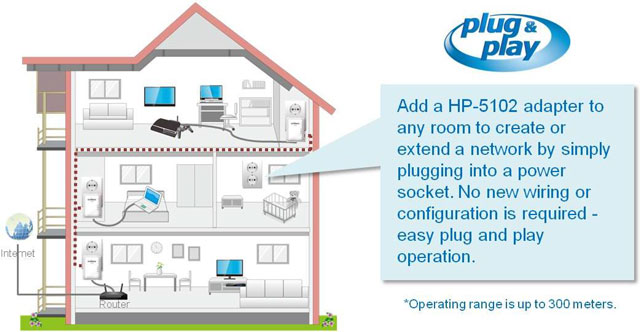

Transmit Network Data via Existing Electrical Wires
The Edimax HP-5102 transforms the existing electrical wires in your home or office into a high-speed network. Complicated, disruptive and unsightly cabling is no longer necessary - if your home or office doesn’t have an existing Ethernet cable infrastructure, the HP-5102 enables you to create a network environment easily and cost-effectively.

Edimax HP-5102 Easy Create and Extend Network via Existing Electrical Wires

500Mbps HomePlug AV Standard & IGMP Support
The Edimax HP-5102 not only complies with the HomePlug AV standard but also supports IGMP managed multicast streams. The HP-5102 can transmit network data over existing electrical wires at speeds of up to 500Mbps. It is also backward compatible with the 200Mbps HomePlug AV standard and has a transmission range of up to 300 meters. IGMP can be used for online gaming and video streaming applications, and allows for more efficient use of network resources. With the HP-5102, you can transfer high-definition video and digital audio quickly and easily.

Edimax 500Mbps Nano PowerLine Adapter HP-5102_HP-5102AC up to 500Mbps

Compatible with HomePlug 1.0 & 1.0 Turbo Devices

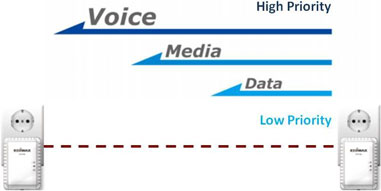

The HP-5102 is designed to ensure efficient coexistence with HomePlug 1.0 and 1.0 Turbo devices, providing guaranteed QoS to all devices present in a heterogeneous powerline network. In such an architecture, the HP-5102 and other HomePlug 1.0 stations share the CSMA/CA allocations, thus providing fair access to HomePlug 1.0 stations based on traffic priority.

Edimax HP-5102 HP-5102AC 500Mbps Nano PowerLine Adapter with QoS

Hardware Combo Group/Reset Button

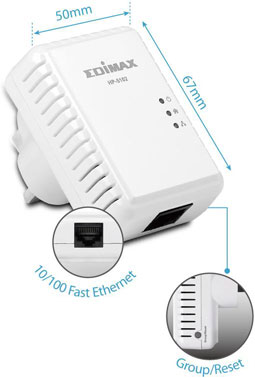

The Edimax HP-5102 has a combo group/reset button for simplified group and reset configurations. Press the group/reset button and the HP-5102 will help you set up a password for your network automatically, or reset the device to factory defaults.

Edimax HP-5102 500Mbps Nano PowerLine Adapter with Compact Size and Group Setting Button

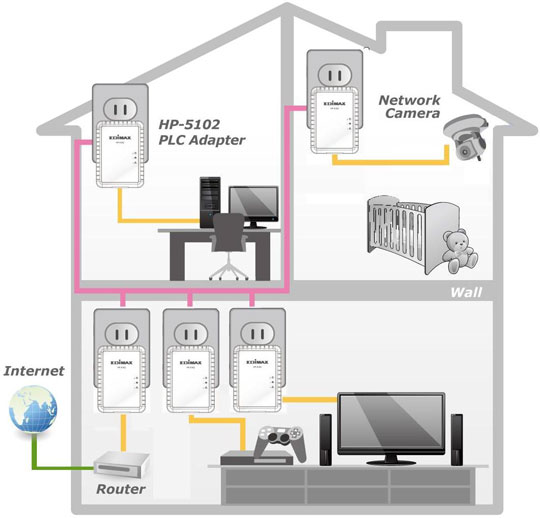

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

Plug a HP-5102 into a power outlet and connect it to a broadband router.
Plug another HP-5102 into a power outlet and connect it to a computer's Ethernet port to establish a powerline connection.

Edimax HP-5102 500Mbps Nano PowerLine Adapter Application Diagram

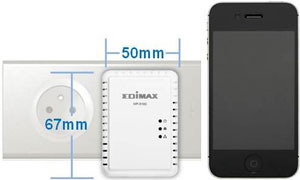

A compact, space-saving and stylish design won’t interfere with neighboring power sockets.

Edimax HP-5102 500Mbps Nano PowerLine Adapter with Compact Size, compare to iphone

Specifications

Hardware	Standards	Effect Data Rate
•1 x Power jack •1 x 10/100Mbps Ethernet LAN port •1 x Group/Reset button •LED indicators: power, Ethernet, powerline	•IEEE 1901 •IEEE 802.3 •IEEE 802.3u	•TCP: Up to 95 Mbps effective throughput •UDP: Up to 95 Mbps effective throughput
Frequency Band	Modulation Schemes	Operating Range
•2-68MHz (with Mask)	•OFDM symbol modulation on line synchronization 1024/256/64/16/8-QAM, QPSK, BPSK, ROBO modulation	•Up to 300 meters
QoS	Nodes	IGMP
•4 levels priority based contention access, and multi segment bursting •8 levels VLAN priority field, TOS field •QoS classification by destination MAC address and IP port	•Up to 15 slaves with 1 master, 16 total devices •Max 8 bridged devices per station	•Support for IPv4/IGMPv1,v2,v3 snooping •Support for IPv6 and MLDv1, v2 snooping •Max 16 source addresses and group members
IC / Memory	Security	Temperature & Humidity
•AR7420+1540 •1MB Flash •8MB SDRAM	•128-bit AES link encryption with key management	•0-45 degrees Celsius •10-90% (non-condensing)
Power Source / Power Consumption	Dimensions & Weight	Certification
•100-240V AC, 50-60Hz •4W	•67 x 50 x 32mm •109g	•CE, FCC, LVD

Package Contents

Powerline adapter x 2
Quick installation guide x 1
CD with setup wizard, user manual & multi-language QIG x 1
Ethernet cable x 2
