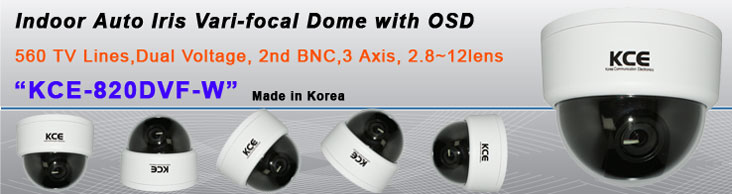

| KCE SONY 560TVL, 3-Axis 2.8~12mm Auto Iris Lens, Dual Voltage |
| |
|
| 3-Axis Rotation Dome Camera with Vari-Focal Lens |
|
The new KCE-820DVF employs a 1/3" SONY Super HAD II CCD image sensor which provides extremely long life, excellent picture quality, exceptional functionality and high reliability.
With built-in 2.8~12mm DC Auto Iris vari-focal lens, it can be easily installed at any places to see different viewing angles without changing another lens.
Different from conventional dome cameras, 3-Axis Dome Camera with rotating function added is allowed to be installed flexibly either wall or ceiling mount.
Equipped with low illumination 0.05 lux, it will perform better under low light condition.
With the HIGH QUALITY PERFORMANCE and COMPETITIVE PRICE, it will make you be the market winner.
|
|
| Features |
1/3 Sony Super HAD II CCD Sensor
High Resolution 560TVL
Satisfied Minimum illumination 0.05 Lux
3-Axis Mounting Capabilities
2.8~12mm Auto Iris Vari-focal
Highly Attractive design
DC12V /AC24V Dual Voltage
Made in Korea
|
|
|
| Specification |
| Image Sensor | 1/3 SONY Super HAD II CCD Sensor |
| Effecitve Pixels |
PAL 755(H)*582(V) |
| Scanning System |
2:1 Interlaced |
| Sync System |
Internal Sync |
| Resolution |
560TVL |
| Min. illumination |
0.05 Lux (CDS Sensor on 0.00 Lux) |
| S/N Ratio |
More than 45dB |
| Gain Control |
Automatic |
| Video Output |
Composite Video Signal: 1.0Vp~p75 ohm |
| Gamma |
0.45 |
| Shutter Speed |
NTSC(1/60~1/100,000), PAL(1/50~1/100,000) |
| Power Supply |
DC12V/AC24V Dual Voltage |
| Power Consumption |
DC12V: 150mA(MAX) / AC24V: 50mA(Max) |
| Lens |
2.8~12mm Varifocal Lens |
| Operating Temp |
-10 degree ~ +50 degree RH95% Max |
| Storage Temp |
-21 degree ~ +60 degree RH95% Max |
|
|
|
|
|
| |
| |
|
|
|
|
|
