+zoom                     RRP AU$ 749 DataSheet

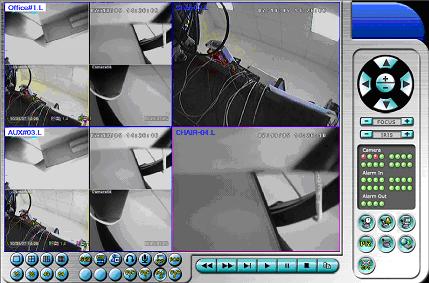

9 CH H.264 Multiplex POS&GPS DVR Features Advanced H.264 compression for saved file and internet transmission D1 resolution for Preview and Recording Mouse control and IR Remote control Real time live View (30frame/NTSC, 25frame/PAL) In-build VGA port for VGA Monitor Support SATA HDD x 2 over 1TB Provide eSATA port for Storage application USB Mouse operation Smart Search and & Playback Record POS Data in Video (EPSON POS compatible) Support GPS modem with NMEA0183 protocol Real sixfold operation - simultaneous record, live, playback, backup, control, & remote access >Digital zoom, X2 & X4 Intelligent motion detection with programmable area and sensitivity Smart Search and & Playback USB and network back up Mobile phone/ PDA remote monitoring Visualized Remote Application software Free bundle 64 CH remote view by IE browser Advanced Central Management Software (e-map) PTZ control capabilities & RS-422/RS-485 keyboard control capabilities POS support - Connect the RS-232 connector to POS system via the appropriate cable. The system supports the POS systems which can be connected to the following printers - Epson-TM200, Epson-TMU295, Epson-TMU300, Epson-TMU675, Epson-TMT882, Epson-RPU420, and Epson-MD332S Package Contents Digital Video Recorder (DVR) Adapter and Power Cord IR Remote Control USB Mouse User Manual CD Quick Guide Manual Screws No Hard Disk included in the package Rear Panel 1. VIDEO IN BNC input ports for cameras, 16 in total 2. VIDEO OUT (MAIN and SPOT) BNC ports for the main and call monitor. 3. AUDIO IN RCA input port for audio signal 4. AUDIO OUT RCA output port for audio signal 5. RS-232 Connect this connector to PTZ camera(s), GPS modem, or POS system. 6. VGA VGA port 7. E-SATA External SATA hard disks port 8. LAN 10/100Base-T Ethernet network port 9. NTSC/PAL Switch Set this unit to NTSC or PAL according to the local TV system. 10. Main Monitor Y/C Output (Optional) the mini-din S-video connector for main monitor display. 11. Alarm Input Connect these connectors to external devices such as sensors or door switches. 12. Alarm Output Connect these connectors to 2 Normally Closed (NC) alarm outputs (1-2) and 2 Normally Open (NO) alarm outputs (3-4). 13. RS-485 Connector Connect this connector to RS-422/485 compatible PTZ camera(s) or keyboard. Please refer to the manuals come with the RS-485 compatible devices for the correct settings. 14. Power Input (DC 12V) Connect to DC 12V power source. 15. Power Switch (POWER) Turn the power of this unit on/off. User Friendly GUI Menu Remote Software (Microsoft Window OS) PDA / Mobile Application The digital video/audio recorder can also be remotely accessed by using a web browser installed on a PDA or mobile phone (EX. Nokia 5300, 6120C, Sony Ericsson W850i, Z610i) that (1) supports xHTML and MJPEG file format, and (2) has screen resolution at 240x320 or above. Specification Vedio Compression Advanced H.264 Algorithm for saved file and internet transmission Vedio Output BNC x 1, BNC Spot x 1,VGA x 1 Audio input RCA*4 Audio output RCA*1 sensor In /Alarm out 9 sensor in/ 1 Alarm out Display Speed PAL: 400fps Recording Resolution (Pixels) PAL:720*576,720*288,360*288(D1/Half-D1/CIF) Recording & Playback Speed PAL: 50fps(720*576),100fps(720*288),200fps(360*288) Picture quatlity 5 levels (highest,high, normal,low, lowest) Mode Normal,Motion,Alarm,Sensor,Schedule, Holiday,Manual Hard Disc Type SATA HDD x 2 Back up device USB,DVD Writer, Remote network Backup PTZ Control TCP/IP, HTTP,DHCP, ADSL, Lan,DDNS Remote Operation AP Software - Virtual DVR Users 5 users allowed to log on DVR simultaneously with independent operation Event Notification Emails (up to 10 settings/Gmail supported), MSN Message Image format output H.264 New Technology OSD GUI(Graphical user interface) DVR Control USB Mouse,Remote control, USB Touch Panel Dimension 430mm (W) × 293mm (H) × 55mm (D) Power DC12V, AC100-240V/in Recovery Watchdog
