| H.264, SATA, VGA, Mouse USB, Remote Control |
| |
|
|
|
|
|
|
| Features |
Advanced H.264 compression for saved file and internet transmission
D1 resolution for Preview and Recording
Mouse control and IR Remote control
Real time live View (30frame/NTSC, 25frame/PAL)
In-build VGA port for VGA Monitor
In-build DVD writer for backup
Support SATA HDD x 2 over 1TB
USB and network back up
Support 3G cell phone for high quality remote monitoring
Visualized Remote Application software
Provide eSATA port (Optional) for Storage application
Motion PopUp & PIP function
USB Mouse operation
Network DDNS/DHCP function
Support Audio /RS-485/ Sensor
Advanced Central Management Software
|
|
| VideoBlog for Calendar Serching and Backup |
|
|
|
| Package Contents |
Digital Video Recorder (DVR)
Adapter and Power Cord
IR Remote Control
USB Mouse
User Manual CD
Quick Guide Manual
Screws
No Hard Disk included in the package
NO DVD Writer Version
|

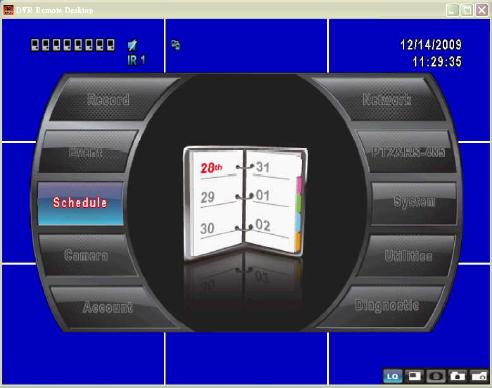

| Live Menu Dispaly (or Computer AP via Network) |
|
|
| |

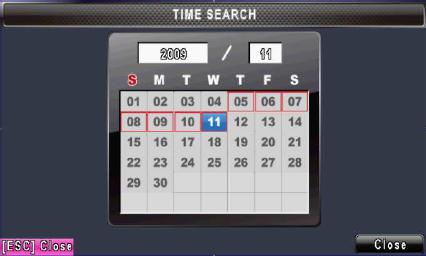

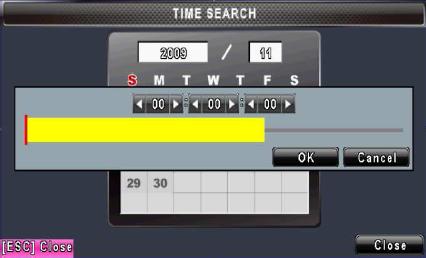

| Recording Video Calender Time Searching |
|
|
| |
| Mobile Application |
| iPhone - ScDvr |
Windows mobile 5.0 |
 |
 |
|
| Java cldc1.0/midp 2.0 |
 |
|
| |
| Specification |
| Vedio Compression | Advanced H.264 Algorithm for saved file and internet transmission |
| Vedio Output |
BNC*1, BNC Spot*1,VGA*1 |
| Audio input |
RCA*4 |
| Audio output |
RCA*1 |
| sensor In /Alarm out |
8 sensor in/ 1 Alarm out |
| Display Speed |
PAL: 200fps |
| Recording Resolution (Pixels) |
PAL:720*576,720*288,360*288(D1/Half-D1/CIF) |
| Recording & Playback Speed |
PAL: 50fps(720*576),100fps(720*288),200fps(360*288) |
| Picture quatlity |
5 levels (highest,high, normal,low, lowest) |
| Mode |
Normal,Motion,Alarm,Sensor,Schedule, Holiday,Manual |
| Hard Disc Type |
SATA HDD x 2 |
| Back up device |
USB flash disk, DVD Writer, Remote network Backup |
| PTZ Control |
TCP/IP, HTTP,DHCP, ADSL, Lan,DDNS |
| Remote Operation |
AP Software - Virtual DVR |
| Users |
5 users allowed to log on DVR simultaneously with independent operation |
| Event Notification |
Emails (up to 10 settings/Gmail supported), MSN Message |
| Image format output |
H.264 New Technology |
| OSD |
GUI(Graphical user interface) |
| DVR Control |
USB Mouse,Remote control, USB Touch Panel |
| Dimension |
430mm (W) × 293mm (H) × 55mm (D) |
| Power |
DC12V, AC100-240V/in |
| Recovery |
Watchdog |
|
|
|
|
| |
| |
|
|
|
|
|
