VT-584
   1/3" Color CCD Door Station


+zoom
                    RRP AU$ 96

FEATURES
1/3" Color CCD Sensor (PAL)
380 TVL
6 infrared LED
Half-flush mount
Surface mount by Raincover (Option)
Cameras visual angle is adjustable
Color of frame is replaceable

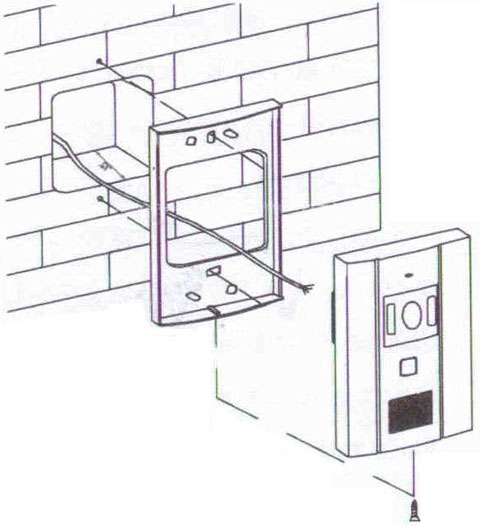

Door Station Installtion Steps
Drill a hole (75x75x35mm) on the wall at recommended height, fix mounting bracket, press outdoor station which connected with cables and adjust the camera angle correctly firmly into place, and then fix panel and bracket with screw.

Install with Rain Cover, RH-584, it becomes wall mount (No need to drill a hole on the wall).
SPECIFICATIONS
Model
  • VT-584
    Camera
  • 1/3" Color CCD Sensor (PAL)
    Resolution
  • 380 TVL
    Frequency
  • 5,625Hz(H)
    Night-view source
  • 6 infrared LED
    Environment Temperature
  • -15C to +55C
    Dimension (mm)
  • 150 (H) x 95 (W) x 45 (D)
    Weight
  • 180 g
