| AVTech, SONY 480TVL, ICR, Water-Proof 12mm Lens, 45m IR,Dual Voltage |
| |
|
 |
| OVERVIEW |
|
To satisfy the environments where low visibility is encountered and high demand of safeguard is a necessity, we're proud to announce the presence of this new innovative IRpro series camera.
Equipped with "IR Shifter", "Smart Light Control" and a large aperture lens (F1.2 / F1.4), this camera optimizes the advantages of an IR camera to provide sharp and clear images, and smartly extends the life of an IR camera to provide great reliability. |
|
|
 |
|
|
|
 |
|
|
Smart Light Control
(Dynamic adjustment for clear and accurate image)
- Clear and Sharp Image Without Over-exposure:
Compared with conventional IR cameras to use CDS sensor only for controlling IR light, IRpro series products use both ¡§CDS¡¨ and ¡¥¡¦Image Comparison¡¨ method to judge whether IR LEDs should be activated for light compensation.
- Longer IR LED Life:
Because of the effective control of IR LEDs and exclusive MCU design, the IR LED life is greatly extended and reduces the cost for using this camera.
|
|
Patent IR Filter Shift Technology, also known as ICR, IR Cut Filter Removal
(to get true color and clear images)
- Daytime (True Color):
True color is presented for these IR camera series to receive the same visible light as human beings can see.
- At night (Clear Image):
IR Filter is automatically shifted away for the CCD to receive Infrared light passing through the lens providing clear and better images.
Besides, the sensor sensitivity and brightness are raised up compared with traditional IR cameras because of the usage of the large aperture lens.
|
|
|
|
|
Large Aperture Lens
- Large Amount of Light Passing Through Lens:
Equipped with large aperture (F1.2 / F1.4) lenses, the amount of light passing through the lens for these IR camera series are more than other normal cameras in the market.
- Lower Power Consumption:
Because of the large amount of light passing through the lens, IR LEDs do not need to be always on for night surveillance. This not only reduces the power consumption, but also extends the IR LED life of your IRpro camera.

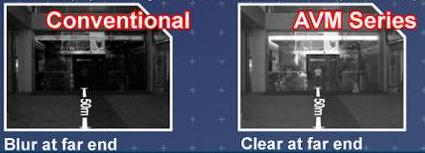

- Longer IR Effective Distance:
Different IR projection angles are available based on the aperture lens you use.
|
| OTHER FEATURES |
|
|
Optimal IR Heat Treatment Solution |
|
1/3" SONY Super HAD Color CCD image sensor |
|
High resolution of 480 TVL |
|
Low light sensitivity of 0.36 Lux at F1.2 |
|
IR distance: over 50 meters |
|
Operating Temperature: - 10°C~ 40°C |
|
Water-Proof, Meet IP67 international standards |
|
Package Contents:
Camera, User manual, Mounting bracket, No Power supply included in the package |
|
|
| |
| SPECIFICATIONS |
|
| Model |
|
|
| Pick up Element |
|
1/3" SONY Color Super HAD CCD image sensor |
|
|
| Number of Pixel |
|
768(H) x 494(V) / 752(H) x 582(V) |
|
|
| Resolution |
|
|
| Minimum illumination |
|
0.36 Lux / F1.2, 0Lux (IR ON) |
|
|
| IR LED |
|
|
| IR Effective Range |
|
|
| Lens |
|
|
| Lens Angle |
|
|
| IR LED Control |
|
|
| D&N Filter Control |
|
|
| Video Output |
|
|
| Power Source |
|
|
| Current Consumption |
|
|
| Dimension (mm) |
|
250(L) x 137 (W) x 114.12 (H) |
|
|
| IP Rating |
|
|
|
|
| |
|
|
|
|
