| SONY 480TVL, ICR, Wire-in-Bracket 8mm Lens, 35m IR |
| |
|
|

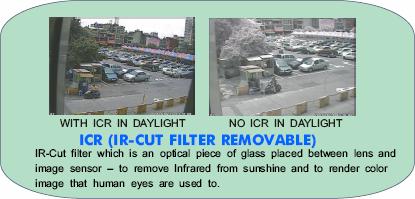

| ICR (Infrared Cut Removal) |
|
|
|
|
| Excellent heat dissipation |
|
|  |
|
With 4 legs LED, there are 2 legs for power-in & the other 2 legs for power-out. The dissipating rate is double comparing with other regular LED. |
|
L-Shape Metal board good for dissipation
LED has mounted on the metal & the heat can be conducted to metal. Most metal has very high heat conductivity, so that when heat conducted to the metal board, the heat can be dissipated very quick. |
|
Aluminum Housing
The heat spread from metal board to aluminum housing which has the highest heat conductivity. |
|
|
| High-Light LED |
|
|
Low Power Consumption & Long life LEDs
|
|
|
Hight-Light LED
&
Traditional LED
Comparishion | Hight-Light LED | Traditional LED |
 |  |
|
| Composition | AlGaInP | GaAs |
|
| Characteristics | Integrated photon | Expended photon |
|
| Circuit Board | Metal Base | Fiber Glass |
|
| Bean Condensing | Yes | No |
|
| Heat Dissipation | Excellent | Poor |
|
| Bean Angle | 20~80 | 30~70 |
|
| Bean Distance | 12~100m | 10~15m |
|
| Life Expectancy | 20,000 working hours | 6,000 working hours |
|
|
|
| Anti-Thunderstoke Design |
|
This camera are protected when sudden volts surge through video cable which was installed outdoor.
Max surge voltage: 5000 Volts |
|
|
 |
| FEATURES |
|
|
1/3" SONY CCD image sensor |
|
Standard resolution of 480 TVL |
|
Low light sensitivity of 0.01 Lux |
|
HIGH-LIGHT LED x 12pcs AlgalnP |
|
IR distance: 35 meters |
|
8 mm lens |
|
In-build IR Cut Filter Removal device |
|
Water Proof IP66 |
|
Pressure die-cast aluminum construction |
|
Wire-in Bracket included |
|
Power consumption: 100 mA (IR Off) 460 mA (IR On) |
|
Package Contents:
Camera, User manual, Bracket, but No Power supply included in the package |
|
|
| |
| SPECIFICATIONS |
|
| Model |
|
|
| Pick up Element |
|
1/3" SONY color CCD image sensor |
|
|
| Number of Pixel |
|
|
| Resolution |
|
|
| Minimum illumination |
|
|
| Scanning System |
|
NTSC: 525 lines 2:1 interlace, PAL: 625 lines 2:1 interlace |
|
|
| Scanning Frequency |
|
NTSC: 15,734Hz(H),60Hz(V), PAL: 15,625Hz(H),50Hz(V) |
|
|
| IR LED |
|
|
| LED Component |
|
|
| IR Effective Range |
|
|
| S/N Ratio |
|
|
| Electronic Shutter |
|
1/60 (1/50) to 1/100,000 sec. |
|
|
| Lens |
|
8 mm lens, 40° View Angle |
|
|
| Cain Control |
|
|
| White Balance |
|
|
| BLC |
|
|
| Video Output |
|
|
| Protection Class |
|
|
| Housing Construction |
|
Aluminum with sunshield wather-proof |
|
|
| Heat Dissipating |
|
Special metal board device |
|
|
| Power Source |
|
|
| Current Consumption |
|
100mA (IR off) ~ 460mA (IR on) |
|
|
| Operation Condition |
|
Working: -20~60°, Storage: -30~70°, Humidity: 0~95%RH |
|
|
| Dimension (mm) |
|
80 (H) x 90 (H) x 250 (L) |
|
|
| Weight |
|
1.5Kg, 2.1Kg(includ bracket) |
|
|
|
|
| |
|
|
|
|
