VGA03
   VGA Connector, BNC to VGA

Features
Support DVR by VGA Output
Output Resolution up to 1280 x 1024
Easy Installation
NTSC / PAL Video System Auto Detection
External DC12V adaptor included
Support any DVR or other video out devices

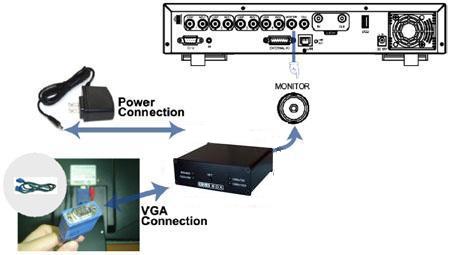

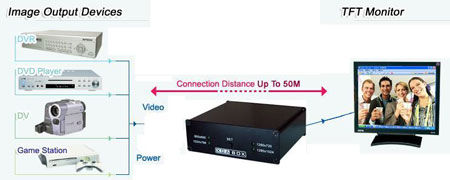

Connection
Specification
Model
  		• VGA03
    Connection
  		• DVR Side: MONITOR OUT
  		• LCD Monitor Side: D-Sub
    Function
  		• Output Resolution Up to 1280 x 1024
  		• Analog non-interlaced RGB Output Supported
  		• NTSC / PAL System Auto Detection
    Power
  		• External adaptor DC12V @ 500mA
    Power Consumption
  		• 2 W
    Dimension (mm)
  		• 91 (L) x 92 (W) x 32 (H)
