| 16 CH NVR, 32Mbps, 1xSATA 16x 1080p,1.3M,720p,D1@2Mbps VGA, HDMI |
| |
|
|
|
NVR3116H NVR ( Network Video Recorder )
Description
NVR3116H NVR (Network Video Recorder) is a high performance network video surveillance system for high-end, convenient, and reliable IP-based real-time monitoring and video recording. Powered by Dual-core embedded processor CPU, the Linux-embedded NVR supports 16 channel H.264 and M-JPEG recording from Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc. IP-based security cameras. With high performance handle capacity, NVR3116H NVR supports long-term and high performance megapixel recording (up to 2 megapixels) from various IP cameras anytime, anywhere over the web, independent of any PC. and smart mobile phone, iPhone, iPad, Adroid.
|
|
Powerful Features
 Up to 16 channel with 1080P realtime live view- H.264/MJPEG dual codec decoding
- Up to 2 megapixels resolution ip camera
- 1080P HDMI/VGA simultaneous video output
- 1 / 4 / 9 / 16 channel synchronous realtime playback, GRID interface
- 1 / 4 / 8 / 9 /16 channel synchronous realtime preview, GRID interface
- Max 32 Mbps recording capacity
- ONVIF Version 2.0 conformance
- Support 1 SATA HDDs up to 4TB, 2 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iPhone, iPad, Adroid(DMSS)

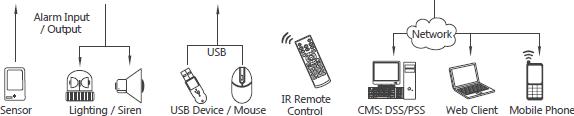

System Connection
PC CMS Software
 Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view- Support DVRs, video servers, IP cameras, decoders and other network products connection.
- PTZ, bidirectional talk, camera settings, color adjustment
- Support device management, configuration, reboot and other operations
- Support decoder connection to realize virtual matrix system and video wall display
- Support different alarm types: external, motion detection, video loss, camera masking and etc.
- Support video monitoring project, layout configuration, recording plan and etc.
- Device status and other information provided in the "health report"
- Support video search from local PC, device itself and other storage center
- Used for the central monitoring system
Mobile Phone Surveillance Software
 |
| iDMSS for ios System : | Support iPhone OS 4.1 or higher and iPad | |
| gDMSS for Android System : | Support Android OS 2.0 or higher. | |
| DMSS for Blackberry System : | Support Blackberry OS 4.6 or higher (Not support 7.0 OS). | |
| DMSS for Symbian System : | Support Symbian S60 3rd. | |
| DMSS for Window Mobile System : | Support Windows Mobile OS 5.0 or higher. | |
| DMSS for Windows System : | Support Windows Phone OS 7.0 or higher | |
| |||
|
Technical Specifications
| NVR3116H |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
|
| Video & Audio |
| IP Camera Input | 16 channel |
| Two-way Talk | 1 channel Input, 1 channel Output |
|
| Display |
| Interface | 1 HDMI, 1 VGA, 1TV |
| Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Display Split | 1 / 4 / 8 / 9 /16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
| Recording |
| Compression | H.264 / MJPEG |
| Resolution | 1080P(1920x1080), 1.3M(1280x960), 720P(1280x720), D1(704x576) & etc. |
| Record Rate | Max 32 Mbps |
| Bit Rate | 48~ 8192kbps |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
| Video Detection & Alarm |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank |
| Alarm Input | 2 channel | | Relay Output | 1 channel | |
| Playback & Backup |
| Sync Playback | 1 / 4 / 9 / 16 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device / Network |
|
| Network |
| Ethernet | 1 RJ-45 port (10/100/1000Mbps) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
|
| Storage |
| Internal HDD | 1 SATA ports, up to 4TB |
|
| Auxiliary Interface |
| USB | 2 ports USB2.0 |
|
| General |
| Power Supply | NVR: DC12V |
| Power Consumption | 12W (without HDD) |
| Working Environment | -10°C ~ +55°C / 10% ~ 90%RH / 86~106kpa |
| Dimension(WxDxH) | Mini 1U, 325mm x 240mm x 45mm |
| Weight | 1.25KG (without HDD) |
|
|
|
|
|
|
|
|
|
|
