IC-DR220
   2 M, H.264, 3.6mm, ICR, 20M IR, IP66

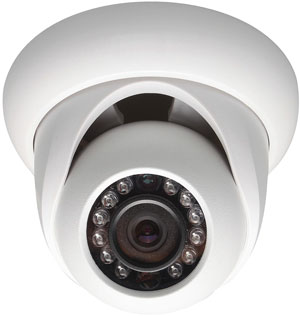

IC-DR220 IP Network Camera

Powerful Features

  • 1/3" 3 Megapixel PS CMOS
  • 25fps@1080P(1920x1080)
  • Day/Night(ICR), AWB, AGC, BLC
  • 3.6mm Fixed lens
  • Max. IR LEDs length 20m, Smart IR
  • Ingress Protection: IP66
  • DC12V, PoE
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iPhone, iPad, Adroid(DMSS)

PC CMS Software

  • Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view
  • Support DVRs, video servers, IP cameras, decoders and other network products connection.
  • PTZ, bidirectional talk, camera settings, color adjustment
  • Support device management, configuration, reboot and other operations
  • Support decoder connection to realize virtual matrix system and video wall display
  • Support different alarm types: external, motion detection, video loss, camera masking and etc.
  • Support video monitoring project, layout configuration, recording plan and etc.
  • Device status and other information provided in the "health report"
  • Support video search from local PC, device itself and other storage center
  • Used for the central monitoring system

Mobile Phone Surveillance Software

iDMSS for ios System :Support iPhone OS 4.1 or higher and iPad
gDMSS for Android System :Support Android OS 2.0 or higher.
DMSS for Blackberry System :Support Blackberry OS 4.6 or higher (Not support 7.0 OS).
DMSS for Symbian System :Support Symbian S60 3rd.
DMSS for Window Mobile System :Support Windows Mobile OS 5.0 or higher.
DMSS for Windows System :Support Windows Phone OS 7.0 or higher

Technical Specifications

IC-DR220
Image Sensor1/3" 3 Megapixel PS CMOS
Effective Pixels1080P(1920x1080)
Electronic Shutter1/3(4)~1/10000s
SynchronizationInternal
Min. Illumination0.1Lux ,0Lux IR on
Camera Features
Max. IR LEDs Length20m, Smart IR
Day/NightAuto(ICR) / Color / B/W
Noise Reduction2D
Lens
Focal Length3.6mm Fixed Lens
Mount TypeBoard-in Type
Video
CompressionH.264/ MJPEG
ResolutionUp to 1080P(1920x1080)
Frame Rate25fps@1080P(1920x1080)
Bit RateH.264: 32K ~ 8192Kbps
Network
Ethernet1 x RJ-45 (10/100Base-T)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Profile S
Max. User Access20 users
Smart PhoneiPhone, iPad, Android, Windows Phone
General
Power SupplyDC12V, PoE
Power ConsumptionMax 4.8W
Working Environment-20°C~+60°C / Less than 95%RH (no condensation)
Ingress ProtectionIP66
DimensionsØ108mm x 86mm
Weight0.36
