+zoom                     RRP AU$ 649 Product Brochure User Manual

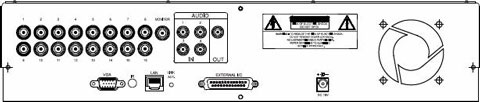

Powerful mobile surveillance support Mobile surveillance via our self-developed and free program, "EagleEye", is supported on many popular mobile platforms, such as iPhone, BlackBerry, WinCE and 3GPP. iPhone BlackBerry J2ME WinCE      REAR PANEL       +zoom Overview 1. MPEG-4 Video Compression Technology 2. VGA OUTPUT Build in for LCD Monitor 3. USB Backup / Network LAN 4. IR Remote Control 5. Support 2 x SATA hard disk AVC-758 is a 16CH MPEG-4 real time DVR. AVC-758 greatly maximizes the vedio quality and minimizes the file size (expand the storage capacity) with the feature of MPEG-4 video compression technology. To quickly back up, the USB port build in for your convenience, or the network backup is also available. Features MPEG-4 Video Compression Technology: Highly improves video quality for live, recording, and network Recording file size is minimized for longest recording time Lower bit rate required for fastest network transfer Multiplex: Allow live display, record, playback, backup and network operation at the same time. Backup Function: Support USB flash drive backup (USB Flash compatible list), and network remote recording & backup. Remote Surveillance: Remote surveillance with the licensed software AP(Windows OS), IE browser (ActiveX) and Quick Time (RTSP). Intelligent Motion Trigger Recording: With advanced settings for motion detection, scheduled motion detection recording (4 different adjustable factors for the motion detection sensitivity) and convenient search function, customized security environment is achieved. Alarm triggered recording will send alerts with images to the designated e-mails and FTP address. Support pre-alarm recording (8MB). Covert Recording: A mask replaces the live image with a blank screen, and the monitor shows nothing but recording is still on. A/V Support: Support 4 audio-in to record sounds, 1 audio-out to playback sounds. VGA Output build in for LCD Monitor. General: System auto recovery after power reconnected Support daylight-saving function Support manual / timer / motion / alarm / remote recording functions Watermark function ensures authentication of the recorded images Support TCP/IP, PPPoE, DHCP and DDNS network connection Package Contents: Digital Video Recorder (DVR) Adapter and Power Cord Free Licensed Software AP CD User Manual Manual CD No Hard Disk included in the package Licensed Software AP - Video & Audio   (Microsoft Windows OS) 1. Image Display 2. Address Book 3. Miscellaneous Control 4. Record 5. Snapshot 6. Information 7. DVR Control Microsoft Internet Explorer - Video & Audio   (ActiveX) 1. Home 9. Single Channel Selection 2. Config 10. Display mode 3. Menu and Arrow Keys 11. Snapshot 4. Key Lock 12. Quad Sequence /Full Sequence 5. Enter 13. Web Transmission 6. Digital Zoom 14. Change Quality 7. Search 15. Change Resolution 8. Playback control buttons 16. Audio Channel Selection QuickTime Player - Video & Audio   (RTSP) Specification Video System NTSC / PAL (switchable) Video Compression Format MPEG-4 Video Input 16 Channels. Composite video signal 1 Vp-p 75Ω BNC Video Output 1*BNC Main Monitor Output 1*VGA for LCD Monitor Display Refresh Rate 400 IPS for PAL 480 IPS for NTSC Image Size FRAME,FIELD and CIF size Adjustable Recording Speed FRAME(704x576): 120, 60, 30, 15 IPS <NTSC> / 100, 50, 24, 12 IPS <PAL> Field(704x288): 240, 120, 60, 30 IPS <NTSC> / 200, 100, 50, 25 IPS <PAL> CIF(352x288): 480, 240, 120, 60 IPS <NTSC> / 400, 200, 100, 50 IPS <PAL> Recording Mode Manual / Timer / Motion / Alarm / Remote Image Quality Setting BEST, HIGH, NORMAL, and BASIC Hard Disk Storage SATA, support HDD x 2, support HDD capacity up to 1.5TB(1,500GB) HDD Quick Cleaning Quick clean up the "index system" of the recorded files. 1TB under 2 seconds Audio I/O 4 audio input, 1 audio output (Mono) Motion Detection Area 16 × 12 grids per camera for all channels Motion Detect Sensitivity 4 adjustable variables with precise calculation for motion detection Pre-alarm Recording Yes (8MB) Backup Device Network remote backup / USB flash drive backup NETWORK Transfer Format MPEG-4 Ethernet 10/100 Base-T. Support remote control and live view via Ethernet Web Interface Support licensed software AP and IE browser Remote Alarm Notification E-mail images, and upload images to FTP site's specific account Network Connection Support TCP/IP, PPPoE, DHCP and DDNS function PTZ control YES Alarm I/O 16 inputs, 1 output Network Surveillance Interface Licensed software vedio viewer /internet explorer/ Mozilla firefox web browser/ QuickTime Player Digital Zoom 2X digital zoom (live mode) Key Lock Yes Video Loss Detection Yes Camera Title Support up to 6 letters Video Adjustable Hue / Color / Contrast / Brightness Date Display Format YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off Power Source DC 19V Power Consumption < 64 W Operating Temperature 10°C ~ 40°C ( 50°C ~ 104°C ) Dimensions (mm) 430(W) x 65(H) x 338(D) mm System Recovery System auto recovery after power reconnected Operating System for Network Function Window Vista/XP/2000;Apple MAC OS Multi-language OSD English / French / German / Spanish / Italian / Portuguese / Chinese / Japanese Multi-language User Manual English / French / German / Spanish / Italian / Portuguese / Chinese / Japanese Socket Plug(one of following types) Australia / Europe / United Kingdom / United States
