| 8 CH HDCVI DVR, 1xSATA 8x 720p VGA, HDMI |
| |
|
|
|
HDCVI (High Definition Composite Video Interface) is an over-coaxial-cable analog HD video transmission standard which developed in-house. The technology renders two HD video formatsˇX1920H (1920x1080) & 1280H (1280x720) by progressive scanning.
Technical Highlights HD Video format: 1920H(1920x1080) & 1280H(1280x720)Analog Modulation: Uncompressed and crosstalk-freeTransmission over coaxial cable: Reliable and non-latency point-to-point transmissionAuto Compensation & Long range transmission:
1280H(1280x720): 500m via Ø75-3(RG-59) / 650m via Ø75-5(RG-6)
1920H(1920x1080): 300m via Ø75-3(RG-59) / 400m via Ø75-5(RG-6)Composite video/audio/PTZ signals:
HDCVI composites video, audio and PTZ signals together and have them transmitted over coaxial cable.Two-way data transmission
 HR1508H HDCVI DVR ( Digital Video Recorder )
Description
HR1508H HDCVI DVR (Digital Video Recorder) is a high performance network video surveillance system for high-end, convenient, and reliable IP-based real-time monitoring and video recording. Powered by Dual-core embedded processor CPU, the Linux-embedded DVR supports 8 channel H.264 and G.711 recording from any analgue camera. Whit high performance handle capacity, HR1508H DVR supports long-term and high performance D1 realtime(25fps) recording and viewing from anywhere over the web, independent of any PC. and smart mobile phone, iPhone, iPad, Adroid.
HR1508H DVR offers high quality video recording and is yet simple to use and easy to maintain. It is an ideal end-to-end network surveillance system for system integrators, SMB, and enterprise users.
|
|
Powerful Features
 Up to 8 channel with 1080P realtime live view- H.264/MJPEG dual-stream decoding
- Full channel @720P(1280x720) realtime recording
- 1080P HDMI/VGA/TV simultaneous video output
- 1 / 4 / 9 channel synchronous realtime playback, GRID interface
- 1 / 4 / 8 / 9 channel synchronous realtime preview, GRID interface
- Support 1 SATA HDDs up to 4TB, 2 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iPhone, iPad, Adroid(DMSS)

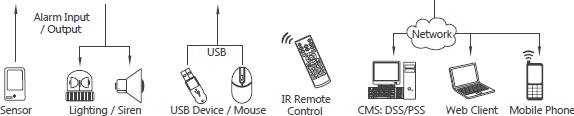

System Connection
PC CMS Software
 Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view- Support DVRs, video servers, IP cameras, decoders and other network products connection.
- PTZ, bidirectional talk, camera settings, color adjustment
- Support device management, configuration, reboot and other operations
- Support decoder connection to realize virtual matrix system and video wall display
- Support different alarm types: external, motion detection, video loss, camera masking and etc.
- Support video monitoring project, layout configuration, recording plan and etc.
- Device status and other information provided in the "health report"
- Support video search from local PC, device itself and other storage center
- Used for the central monitoring system
Mobile Phone Surveillance Software
 |
| iDMSS for ios System : | Support iPhone OS 4.1 or higher and iPad | |
| gDMSS for Android System : | Support Android OS 2.0 or higher. | |
| DMSS for Blackberry System : | Support Blackberry OS 4.6 or higher (Not support 7.0 OS). | |
| DMSS for Symbian System : | Support Symbian S60 3rd. | |
| DMSS for Window Mobile System : | Support Windows Mobile OS 5.0 or higher. | |
| DMSS for Windows System : | Support Windows Phone OS 7.0 or higher | |
| |||
|
Technical Specifications
| HR1508H |
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
|
| Video |
| Input | 8 channel, BNC |
| Standard | PAL(625Line, 50f/s) |
|
| Audio |
| Input | 1 channel, RCA |
| Output | 1 channel, RCA |
| Two-way Talk | 1 channel Input, 1 channel Output, BNC |
|
| Display |
| Interface | 1 HDMI, 1 VGA, 1TV, BNC |
| Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Display Split | 1 / 4 / 8 / 9 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
| Recording |
| Compression | Video: H.264, Audio: G.711 |
| Resolution | 720P(1280x720) / 960H(960x576) / D1(704x576) / CIF(352x288) / QCIF(176x144) |
| Record Rate | Main Stream: 720P/960H/D1/HD1/2CIF/CIF(1~25fps), Extra Stream: CIF/QCIF(1~25fps) |
| Bit Rate | 48~ 4096kbps |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
| Video Detection & Alarm |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank |
| Alarm Input | 0 channel |
| Relay Output | 0 channel |
|
| Playback & Backup |
| Sync Playback | 1 / 4 / 9 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device / Network |
|
| Network |
| Ethernet | 1 RJ-45 port (10/100/1000Mbps) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
|
| Storage |
| Internal HDD | 1 SATA ports, up to 4TB |
|
| Auxiliary Interface |
| USB | 2 ports USB2.0 |
| RS485 | 1 port, For PTZ control | |
| General |
| Power Supply | DC12V/ 2A |
| Power Consumption | 10W (without HDD) |
| Working Environment | -10°C ~ +55°C / 10% ~ 90%RH / 86~106kpa |
| Dimension(WxDxH) | Mini 1U, 325mm x 240mm x 45mm |
| Weight | 1.5KG (without HDD) |
|
|
|
|
|
|
|
|
|
|
