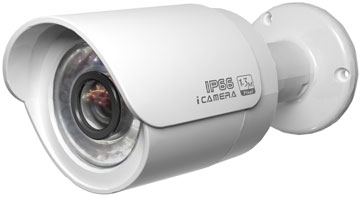

HDCVI (High Definition Composite Video Interface) is an over-coaxial-cable analog HD video transmission standard which developed in-house. The technology renders two HD video formats¡X1920H (1920x1080) & 1280H (1280x720) by progressive scanning. Technical Highlights HD Video format: 1920H(1920x1080) & 1280H(1280x720) Analog Modulation: Uncompressed and crosstalk-free Transmission over coaxial cable: Reliable and non-latency point-to-point transmission Auto Compensation & Long range transmission:      1280H(1280x720): 500m via Ø75-3(RG-59) / 650m via Ø75-5(RG-6)      1920H(1920x1080): 300m via Ø75-3(RG-59) / 400m via Ø75-5(RG-6) Composite video/audio/PTZ signals:      HDCVI composites video, audio and PTZ signals together and have them transmitted over coaxial cable. Two-way data transmission            HC-BR110S-0360 HDCVI Camera

Powerful Features

• 1/2.9" 1Megapixel CMOS
• 25fps@720P(1280x720)
• High speed, long distance real-time transmission
• Day/Night(ICR), AWB, AGC, BLC
• 3.6mm fixed lens
• Max. IR LEDs length 20m, Smart IR
• Ingress Protection: IP66
• DC12V
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iPhone, iPad, Adroid(DMSS)

PC CMS Software

• Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view
• Support DVRs, video servers, IP cameras, decoders and other network products connection.
• PTZ, bidirectional talk, camera settings, color adjustment
• Support device management, configuration, reboot and other operations
• Support decoder connection to realize virtual matrix system and video wall display
• Support different alarm types: external, motion detection, video loss, camera masking and etc.
• Support video monitoring project, layout configuration, recording plan and etc.
• Device status and other information provided in the "health report"
• Support video search from local PC, device itself and other storage center
• Used for the central monitoring system

Mobile Phone Surveillance Software

		iDMSS for ios System :	Support iPhone OS 4.1 or higher and iPad
		gDMSS for Android System :	Support Android OS 2.0 or higher.
		DMSS for Blackberry System :	Support Blackberry OS 4.6 or higher (Not support 7.0 OS).
		DMSS for Symbian System :	Support Symbian S60 3rd.
		DMSS for Window Mobile System :	Support Windows Mobile OS 5.0 or higher.
		DMSS for Windows System :	Support Windows Phone OS 7.0 or higher

Technical Specifications
