| H.264, SATA, VGA, Mouse USB, Remote Control, DVD |
| |
|
| 16 CH H.264 Multiplex DVR |
|
|
|
|
|
|
|
|
| Features |
Advanced H.264 compression for saved file and internet transmission
D1 resolution for Preview and Recording
Mouse control and IR Remote control
Real time live View (30frame/NTSC, 25frame/PAL)
In-build VGA port for VGA Monitor
In-build DVD writer for backup
Support SATA HDD x 2 over 1TB
USB and network back up
Support 3G cell phone for high quality remote monitoring
Visualized Remote Application software
Provide eSATA port (Optional) for Storage application
Motion PopUp & PIP function
USB Mouse operation
Network DDNS/DHCP function
Support Audio /RS-485/ Sensor
Advanced Central Management Software
|
|
| VideoBlog for Calendar Serching and Backup |
|
|
|
| Package Contents |
Digital Video Recorder (DVR)
Adapter and Power Cord
IR Remote Control
USB Mouse
User Manual CD
Quick Guide Manual
Screws
No Hard Disk included in the package
|
| Live Menu Dispaly (or Computer AP via Network) |
|
|
| |
| Recording Video Calender Time Searching |
|
|
| |
| Mobile Application |

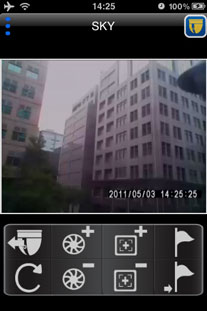

| iPhone - ScDvr |

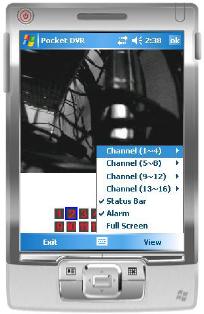

Windows mobile 5.0 |
 |
 |
|
| Java cldc1.0/midp 2.0 |
 |
|
| |
| Rear Panel |
|
| 1. | MAIN monitor | BNC port for the main monitor. |
| 2. | SPOT monitor | BNC port to display full screen image of all installed cameras in sequence |
| 3. | VIDEO IN | BNC input ports for cameras, 16 in total |
| 4. | AUDIO IN | RCA input port for audio signal |
| 5. | EXTERNAL I/O | EXTERNAL I/O port (see below for pin definition) |
| 6. | Fan | DC 12V 40mm X 40mm fan |
| 7. | NTSC¡þPAL Switch | Switch between NTSC and PAL format |
| 8. | AUDIO OUT | RCA output port for audio signal |
| 9. | USB | USB port |
| 10. | LAN | Network port |
| 11. | POWER | Power switch |
| 12. | DC 12V | Socket for a DC 12V input |
| 13. | E-SATA | External SATA hard disks port (Optional) |
| 14. | VGA | VGA port |
|
|
| EXTERNAL I/O Definition |
|
| 1. | RS485_B | 6. | ALARMIN-6 | 11. | ALARMIN-16 | 16. | SEN_O_NC_1 | 21. | ALARMIN-9 |
| 2. | COMMON_1 | 7. | ALARMIN-8 | 12. | COMMON_2 | 17. | ALARMIN-1 | 22. | ALARMIN-11 |
| 3. | GND | 8. | ALARMIN-10 | 13. | SEN_O_NC_2 | 18. | ALARMIN-3 | 23. | ALARMIN-13 |
| 4. | ALARMIN-2 | 9. | ALARMIN-12 | 14. | RS485_A | 19. | ALARMIN-4 | 24. | ALARMIN-15 |
| 5. | ALARMIN-4 | 10. | ALARMIN-14 | 15. | SEN_O_NO_1 | 20. | ALARMIN-7 | 25. | SEN_O_NO_2 |
|
| |
| Specification |
| Vedio Compression | Advanced H.264 Algorithm for saved file and internet transmission |
| Vedio Output |
BNC*1, BNC Spot*1,VGA*1 |
| Audio input |
RCA*4 |
| Audio output |
RCA*1 |
| sensor In /Alarm out |
16 sensor in/ 1 Alarm out |
| Display Speed |
PAL: 400fps |
| Recording Resolution (Pixels) |
PAL:720*576,720*288,360*288(D1/Half-D1/CIF) |
| Recording & Playback Speed |
PAL: 100fps(720*576),200fps(720*288),400fps(360*288) |
| Picture quatlity |
5 levels (highest,high, normal,low, lowest) |
| Mode |
Normal,Motion,Alarm,Sensor,Schedule, Holiday,Manual |
| Hard Disc Type |
SATA HDD x 2 |
| Back up device |
USB flash disk, DVD Writer, Remote network Backup |
| PTZ Control |
TCP/IP, HTTP,DHCP, ADSL, Lan,DDNS |
| Remote Operation |
AP Software - Virtual DVR |
| Users |
5 users allowed to log on DVR simultaneously with independent operation |
| Event Notification |
Emails (up to 10 settings/Gmail supported), MSN Message |
| Image format output |
H.264 New Technology |
| OSD |
GUI(Graphical user interface) |
| DVR Control |
USB Mouse,Remote control, USB Touch Panel |
| Dimension |
430mm (W) × 293mm (H) × 55mm (D) |
| Power |
DC12V, AC100-240V/in |
| Recovery |
Watchdog |
|
|
|
|
| |
| |
|
|
|
|
|
