| KCE SONY 600TVL, Vandal-Proof 2.9mm Lens |
| |
|

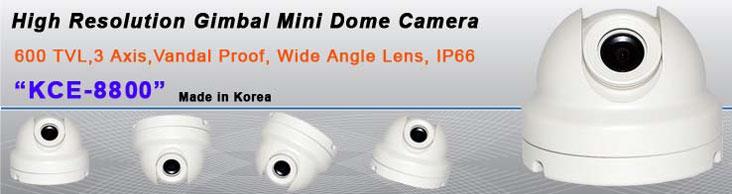

| 3-Axis Mini Gimbal Dome Camera with Fixed Lens |
|
The new KCE-8800 is the ideal Dome for Premium External and Internal Installations where beautiful design and a discreet camera is needed such as exhibition hall, restaurant, house, etc.
Different from conventional dome cameras, 3-Axis Dome Camera with rotating function added is allowed to be installed flexibly either wall or ceiling mount.
This Dome uses the Sony 600TVL Super HAD II CCD and Processing with the latest Processing to enhance Colour and Clarity.
A Wide Angle 2.9mm lens provides good area coverage.
|
|
| Features |
1/3 Sony Super HAD II CCD Sensor
High Resolution 600TVL
Comprehensive Pan and Tilt adjustment
Multi Axis Gimbal for mounting at any angle
2.9mm Wide Aange Fixed Lens
CDS Sensor to ensure the correct light level for IR LED switching
IP66 Weather Resistant rating
Made in Korea
|
|
|
| Specification |
| Image Sensor | 1/3 SONY Super HAD II CCD Sensor |
| Effecitve Pixels |
PAL 755(H)*582(V) |
| Scanning System |
2:1 Interlaced |
| Sync System |
Internal Sync |
| Resolution |
600TVL |
| Min. illumination |
0.05 Lux (CDS Sensor on 0.00 Lux) |
| S/N Ratio |
More than 45dB |
| Gain Control |
Automatic |
| Video Output |
Composite Video Signal: 1.0Vp~p75 ohm |
| Gamma |
0.45 |
| Shutter Speed |
NTSC(1/60~1/100,000), PAL(1/50~1/100,000) |
| Power Supply |
DC12V |
| Power Consumption |
DC12V: 100mA(MAX) |
| Lens |
2.9mm Lens |
| Operating Temp |
-10 degree ~ +50 degree RH95% Max |
| Storage Temp |
-21 degree ~ +60 degree RH95% Max |
|
|
|
|
|
| |
| |
|
|
|
|
|
