M741Mb-C541

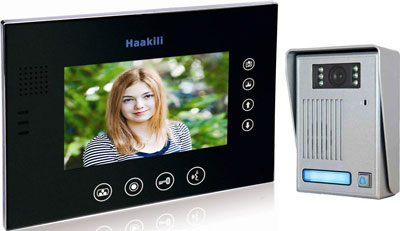

   7" Color, 4-Wire, Touch Panel, Surface-Mt Door Memory M741Mb + C541

FEATURES
7 inch Color TFT Touch Panel Monitor (Wide screen)
1/3" Color CCD Sensor Door Station Camera
Brightness and volume adjustable
Built-in Memory (100s pictures)
Save picture by pressing door bell or record button
Up to 4 monitors connected directly
Up to 2 door stations connected directly
Surface-Mount Water-proof, Anti-vadal door stations
Package Contents:
M741Mb Monitor, Wall mount bracket, C541 Door Station Camera, User manual, DC Power supply x 1, Screws
Color Memory
Image can be recorded both manually and automatically. 100s images capacity, and old images will be replaced by new ones if memory is full.
Up to 4 outdoor stations & Up to 4 monitors connected directly
SPECIFICATIONS
Monitor Model
  		• M741Mb
    Memory Built-in
  		• Yes
    Touch Panel
  		• Yes
    Resolution
  		• 7 Inch TFT, 1440(H)x234(V) pixels
    Wiring
  		• 4 wires in polarity
    Video signal
  		• 1Vp-p, 75Ohm, CCIR standard
    Power supply
  		• DC 12-16V (supplied by Adaptor)
    Dimension (mm)
  		• 160 (H) x 245 (W) x 20 (D)
    Door Station Camera Model
  		• C541
    Camera
  		• 1/3" Color CCD Sensor
    Lens
  		• 0.05Lux Board Lens
    View Angle
  		• 75°
    Housing Construction
  		• Stainless steel panel
    Night-view source
  		• 6 infrared LED for night vision
    Bracket
  		• Including Suface Mount Rain-Cover Bracket
    Wiring
  		• 4 wires in polarity for monitor, 2 wires for Door Latch
    Dimension (mm)
  		• 130 (H) x 90 (W) x 43 (D) mm
    2 Door Station to 4 Monitors Wiring Diagram
