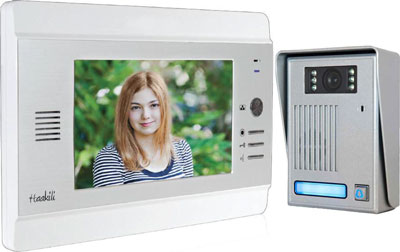

| 7" Color, 4-Wire, Surface-Mt Door M740w + C541 |
| |
|
 |
| FEATURES |
|
|
7 inch Color TFT Monitor (Wide screen) |
|
1/3" Color CCD Sensor Door Station Camera |
|
Brightness and volume adjustable |
|
Up to 4 monitors connected directly |
|
Up to 2 door stations connected directly |
|
Surface-Mount Water-proof, Anti-vadal door stations |
|
Package Contents:
M740w Monitor, Wall mount bracket, C541 Door Station Camera, User manual, DC Power supply x 1, Screws |
|
|
|

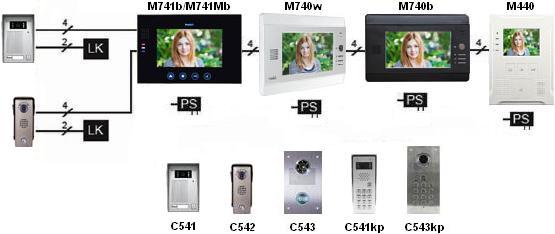

| Up to 4 outdoor stations & Up to 4 monitors connected directly |
|
|
|
|
| SPECIFICATIONS |
|
| Monitor Model |
|
|
| Resolution |
|
7 Inch TFT, 1440(H)x234(V) pixels |
|
|
| Wiring |
|
|
| Video signal |
|
1Vp-p, 75Ohm, CCIR standard |
|
|
| Power supply |
|
DC 12-16V (supplied by Adaptor) |
|
|
| Dimension (mm) |
|
160 (H) x 245 (W) x 20 (D) |
|
|
|
|
 |
|
|

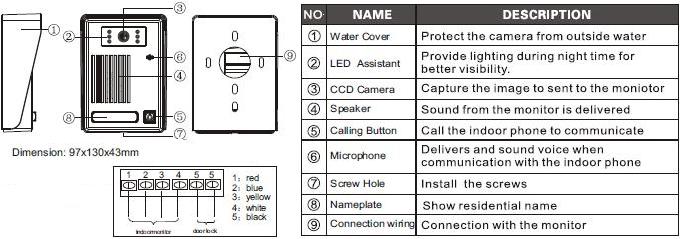

| Door Station Camera Model |
|
| Camera |
|
|
| Lens |
|
|
| View Angle |
|
|
| Housing Construction |
|
|
| Night-view source |
|
6 infrared LED for night vision |
|
|
| Bracket |
|
Including Suface Mount Rain-Cover Bracket |
|
|
| Wiring |
|
4 wires in polarity for monitor, 2 wires for Door Latch |
|
|
| Dimension (mm) |
|
130 (H) x 90 (W) x 43 (D) mm |
|
|
|
 |
|
|
|
|

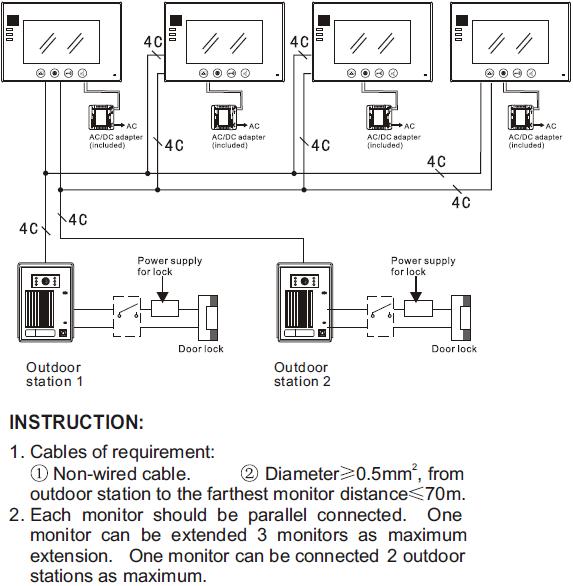

| 2 Door Station to 4 Monitors Wiring Diagram |
|
| |
|
|
|
|
|
|
